SOLID HOARDING

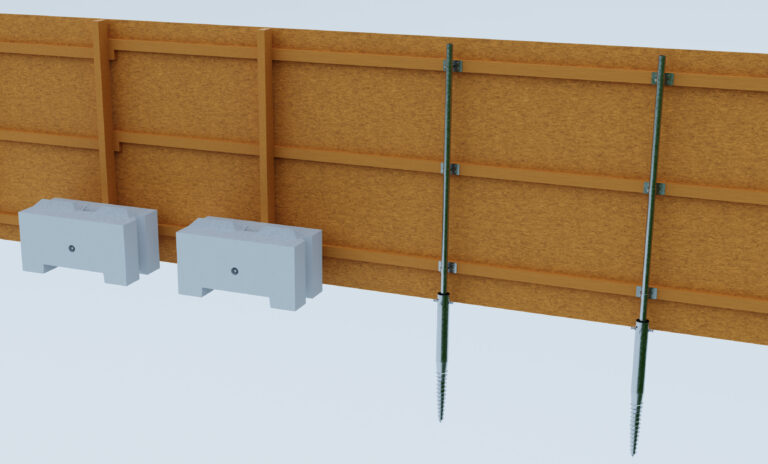

HoardPro™ - Timber
Our HoardPro™ Timber Solid Hoarding utilising heavy duty Ground Screws and in-ground stabilisation blades with adjustable timber rails clamps. FSC® and PEFC™certified timber rail and boarding allow for a cost effective and robust solid hoarding solution. Solid hoarding without the need for unsustainable concrete footings, heavy kentledge or stabilising braces.
KEY FEATURES
- FSC® and PEFC™ certified timber
- Custom Graphics & colours available
- Up to 2.4m height
- High wind load resistant
- Sustainable materials
- Zero trip on public and working side
- Suitable with crowd loading
- Instantly load bearable with no concrete cure time
- Lightweight manual handling for reduced risk of injuries
- No Concrete Footings or Heavy Kentledge
- Compliant in TPO and RPA zones
- Site-Specific Temporary works package with on-site anchor testing
FIXING OPTIONS

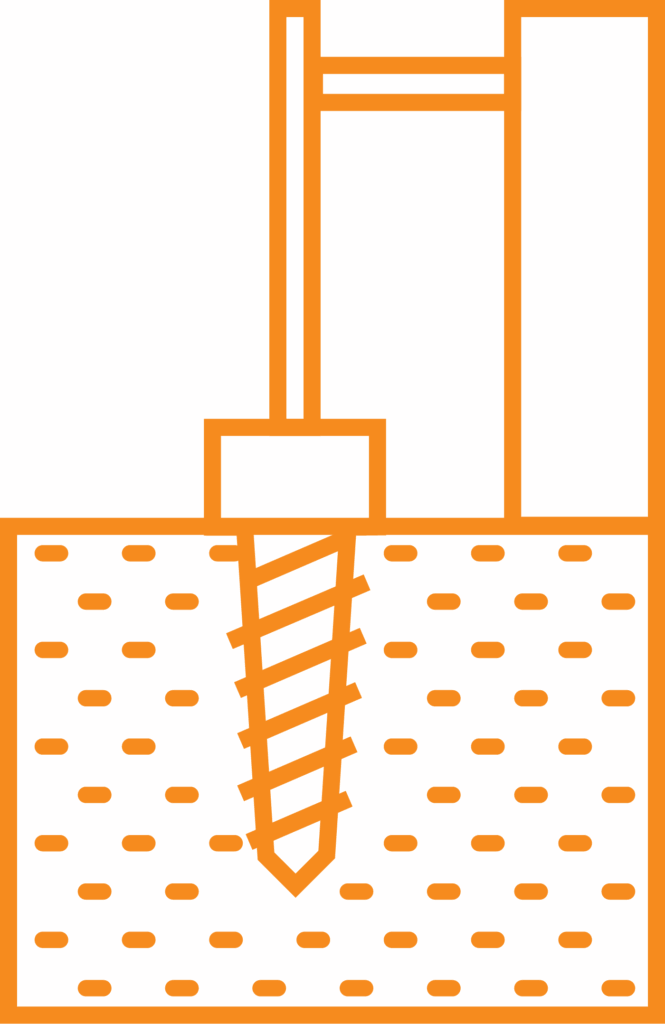

Soil
Product Name | Product Code | Quantity | Weight | Finish | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HoardScrew Foundation | FL-HPS | 1 | 12kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stabilising Blades | FL-HPSB | 1 | 2.25kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3000mm x 60.3mm Galvanised Steel Tube | FL-GT60.3 | 1 | 17kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bespoke Adjustable Flat Plate Clamp | FL-AFPC | 3 | 2.5kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
C24 Treated Timber Rails (50mm x 100mm) | FL-TR4 | 3 | 6kg | Treated Timber | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
18mm Premium MDO Ply (2440mm x 1220mm)
with Covering Strips | FL-MPLY | 2 | 15kg | Premium Ply Board | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Options: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Painted To Any RAL Colour | Optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Graphic & Advertisement Covering | Optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

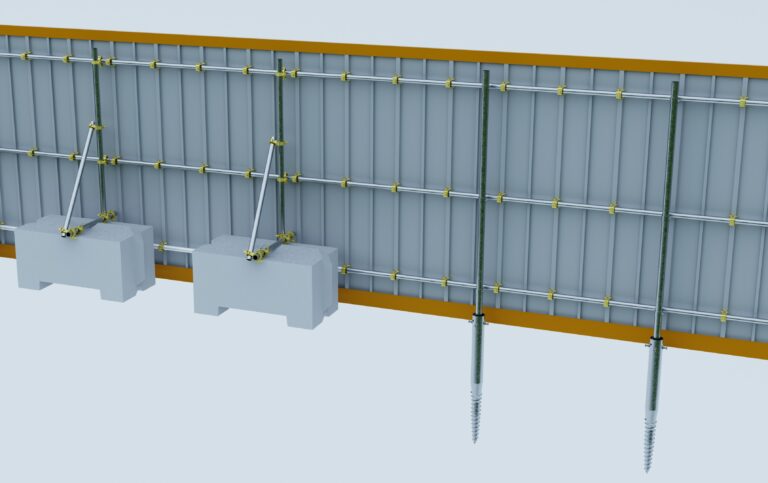

HoardPro™ - Recycled Plastic
Our HoardPro Recycled Plastic Solid Hoarding utilises heavy duty Ground Screws and in-ground stabilisation blades with adjustable tube clamps for lateral and rotational flexibility. This fully reusable solution incorporates recycled plastic modular panelling which consists of no one time use materials and reduces the project carbon footprint.
KEY FEATURES
- Recycled plastic hoarding panels
- Durable and weather resistant
- Zero Maintenance
- Up to 2.4m height
- High wind load resistant
- Reusable and sustainable materials
- Zero trip on public and working side
- Suitable with crowd loading
- Instantly load bearable with no concrete cure time
- Lightweight manual handling for reduced risk of injuries
- No Concrete Footings or Heavy Kentledge
- Compliant in TPO and RPA zones
- Range of colours available
- Site-Specific Temporary works package with on-site anchor testing
FIXING OPTIONS
Soil
Product Name | Product Code | Quantity | Weight | Finish |
|---|---|---|---|---|
HoardScrew Foundation | FL-HPS | 1 | 12kg | Hot Dip Galvanised |
Stabilising Blades | FL-HPSB | 1 | 2.25kg | Hot Dip Galvanised |
3000mm x 60.3mm x 3.6mm Galvanised Tube | FL-GT60.3 | 1 | 17kg | Hot Dip Galvanised |
Adjustable Tube Crossover Clamp | FL-ATCC | 3 | 2.5kg | Hot Dip Galvanised |
48.3mm x 3.2mm Galvanised Steel Tube | FL-GT48.3 | 3 | 13kg | Hot Dip Galvanised |
Recycled Plastic Hoarding Kit – Steel Panel Clamps, Recycled PVC Hoarding Panel with Trim | FL-HPRP | N/A | N/A | Recycled Plastic/Steel |
Hoard-Ankor™ - Steel Panels
Our HoardAnkor™ solution is our temporary modular steel hoarding panel system. Offering privacy, security, longevity and stability. This system consists of our original products to provide a stable, rapid deployment, locked and compliant solutions in high wind conditions.
KEY FEATURES
- Up to 2.4m height including galvanised steel mesh extension
- Privacy infill panels and skirts
- High wind load resistant
- Reusable and sustainable materials
- Zero trip on public side
- Rapid deployment and removal
- Temporary fencing fully anchored and locked with our anti-lift strap
- Instantly load bearable with no concrete cure time
- Lightweight manual handling for reduced risk of injuries
- No Concrete Footings or Heavy Kentledge
- Compliant in TPO and RPA zones
- Free of charge Site-Specific Temporary works package with on-site anchor testing
Suitable for:
Soil
Concrete
Asphalt
INSTALLATION TOOLS
Battery Impact Wrench
Petrol Impact Wrench
Product Name | Product Code | Quantity | Weight | Finish | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Open Mesh Bracket | FL-OMB | 1 | 4.5kg | Powder Coated | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Open Mesh Locking Strap | FL-OMLS | 1 | 0.5kg | Powder Coated | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stabilising Brace | FL-SB | 1 | 5kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gripper Coupler | FL-GC | 4 | 0.25kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temporary Steel Hoarding Panel (2.1m x 2.1m) | FL-SHP | 1 | 30kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temporary Steel Hoarding Infill Panel | FL-SHIP | 1 | 4kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temporary Steel Hoarding Mesh Extension (600mm) | FL_SHME | 1 | 4kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Choose from the following fixing options: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flanged Ground Screw (Soil) | FL-FGS | 2 | 3kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Concrete Thunderbolt | FL-CSA | 4 | 0.1kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Asphalt Resin Anchor | FL-AAS | 4 | 0.1kg | Hot Dip Galvanised | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Want to learn more?
Get in touch to find out more.
